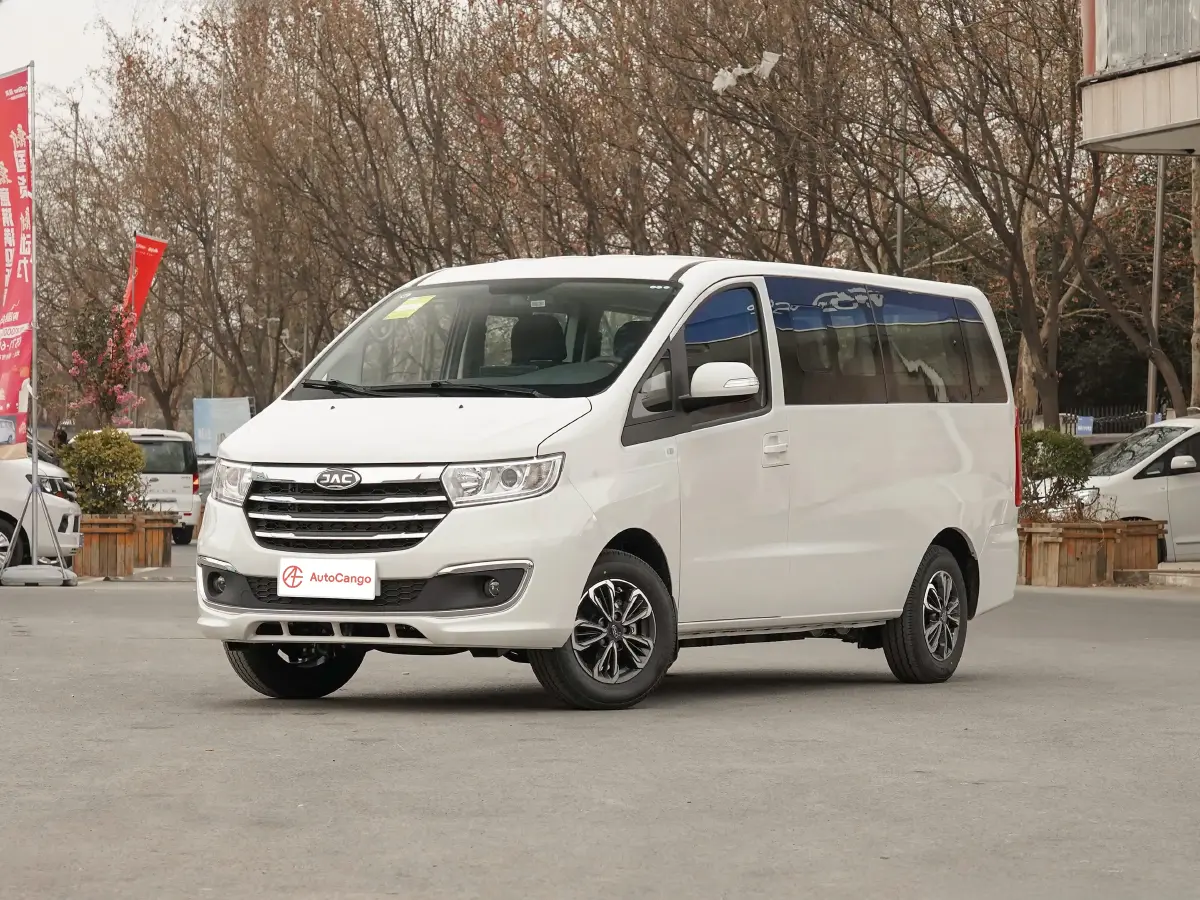

2023 JAC Refine E3 BEV 70.56KWH

Brand

JAC Refine

Series

E3

Manufacturer

JAC Refine

Model

2023 JAC Refine E3 BEV 70.56KWH

Sales Status

MSRP

179800.00

Launch Time

2023.01

Class

Compact MPV

Fuel Type

BEV

Frame Structure

Unibody

Body Structure

MPV

Doors

4

Seats

7/8/9

Body Type

4doors 7/8/9seats MPV

Top Speed(km/h)

130

Maximum Power(kW)

130

Maximum Torque(N·m)

320

Battery Type

Lithium Iron Phosphate Battery（LFP）

Battery Capacity (kWh)

70.56

Electricity Consumption (kWh/100Km)

18.3

Fast Charge Percentage (%)

80

Fast Charging Function

Supported

CLTC Range (km)

415

Fast Charge Percentage(%)

80

CLTC Range(km)

415

Front Brake Type

Ventilated Disc

Rear Brake Type

Disc

Parking Brake Type

Electric Parking Brake

Aircondition Control

Manual

Interior Rearview Mirror Function

Manual Dim

Multimedia/Charging Interface

USB

Usb/Type-C Interface Quantity

Front2/Rear3

Key Type

Remote key

Length(mm)

5145

Width(mm)

1765

Height(mm)

1900

Body Wheelbase(mm)

3110

Front Track(mm)

1500

Rear Track(mm)

1475

Dimension

5145*1765*1900

Fully Loaded Ground Clearance(mm)

130

Approach Angle(°)

18

Departure Angle(°)

16

Exterior Rearview Mirror Function

Electric Adjustment
Heating

One Touch Window Control

Front Seats

Sliding Door Form

Right side manual

Vanity Mirrors

Passenger Seat

Door Opening Style

Front hinged doors+Side sliding doors

Drive Mode

Rear-Engine
Rear-Wheel Drive

Driving Mode Switch

Sport
Eco
Standard/Comfort

Drive Assistance Image

Backup view

Number Of Cameras

1

Number Of Ultrasonic Radars

4

Cruise Control System

Cruise Control System

Map Brand

Amap

Motor Type

Permanent-magnet Synchronous Motor

Total Motor Power (kW)

130

Total Motor Torque (N·m)

320

Electric Motor(Ps)

177

Rear Motor Maximum Power (kW)

130

Rear Motor Maximum Torque (N·m)

320

Number Of Motors

1

Motor Layout

Rear

Total Motor Power (Ps)

177

Electric Motor

130

Number Of Speakers

4Speakers

Low Beam

Halogen

High Beam

Halogen

Lane Departure Warning System

○

Tire Pressure Monitoring

Low Pressure Warning

Seatbelt Reminder

Main Seat

Lcd Console Screen

LCD Touch Screen

Console Screen Size(inch)

10.25inches

Speech Recognition Control System

Multimedia System
Navigation
Phone

Driving Computer Display Screen

Color

Lcd Dashboard Size

3.5inches

Seat Material

Fabric

Driver Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Passenger Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Rear Seat Adjustment

Backrest Adjustment

Seat Layout

●2-2-3
○2-2-2-3
○2-3-3

Rear Seats Folding Form

Split-folding

Steering Wheel Material

Leather

Steering Wheel Adjustment

Manual

Power Steering Type

Electric Power Steering

Shifting Form

Electronic gear lever shift

Front Suspension Type

Double wishbone independent suspension

Rear Suspension Type

Dependent suspension

4G/5G Network

4G

Mobile App Remote Control

Door
Window
Engine
Charging
Air condition
Vehicle diagnosis
positioning/searching

Rim Material

Alloy

Front Tire Specs

195/70 R15

Rear Tire Specs

195/70 R15

Spare Tire Specs

Tire Repair kit

Number Of Gears

1

Transmission Type

AT

Transmission Abbreviation

SST

Battery Pack Warranty

8Yr. / 200000km.

Warranty

3yr. / 100000km.

Curb Weight(kg)

2080

Maximum Laden Mass(Kg)

2835
